Demag DRS ＆ DRS-M Wheel Block System

DRS and DRS-M travel wheel blocks are both high-performance travel wheel block systems produced by Demag, which are similar in some respects, but also have their own characteristics and advantages. Here are the main differences and smilarities between DRS and DRS-M wheel blocks:

The History of DRS and DRS-M Travel Wheel Blocks

The DRS travel wheel block was launched in 1997 with 8 different wheel sizes to suit different needs. The specific models are DRS250, DRS315, DRS400, DRS500. DRS-M is a further developed version of DRS wheel with enhanced functional features. The specific models are DRS112, DRS125, DRS160, DRS200. The housing of the DRS-M traveling wheel block is manufactured as two symmetrical die-cast aluminum halves at Demag's facility in Wetter, Germany. which is constructed from high-strength, corrosion resistant aluminum alloy.

The differences of DRS and DRS-M Travel Wheel Blocks

1. Load Capacity and Series Positioning

• DRS-M Series (Models 112-200): Wheel load range from 2.75 to 10 tons, emphasizing lightweight design, cost-effectiveness, and maintenance-free operation.

• DRS Series (Models 250-500): Wheel load range from 16 to 40 tons, designed specifically for ultra-heavy loads, high-intensity continuous operation, and harsh working conditions.

2. The Preferred Choice for Extreme Heavy-Duty Applications: DRS Series (Models 250-500)

If your equipment operates in demanding environments such as steel and metallurgy, port terminals, or heavy machinery manufacturing, the DRS Series is the more reliable choice. Its design focuses on ultimate durability and predictable maintenance:

• Robust Bearing System: Utilizes tapered roller bearings that can be re-lubricated, significantly extending service life under impact, vibration, and high-load conditions.

• Adapting to Complex Track Conditions: Although the track gauge compensation is relatively modest (up to 4 mm), this series offers a key advantage — the ability to compensate for track skewing (up to 14‰), effectively addressing issues like rail gnawing and uneven wear caused by track installation errors or structural deformation, making it suitable for more complex operating environments.

• Heavy-Duty Safety and Maintenance:

• Torque Bracket: Effectively absorbs peak torque generated by wheel slippage, protecting the drive unit (e.g., gear motor) from impact damage.

• Residual flange indicator: Allows visual monitoring of flange wear without disassembly, serving as a key feature for predictive maintenance and avoiding unplanned downtime.

• Ultra-High-Strength Housing: Made of spheroidal graphite cast iron, providing unparalleled structural integrity and resistance to deformation.

3. The Ideal Choice for Lightweight Scenarios: DRS-M Series (Models 112-200)

For applications such as automated storage and retrieval systems (AS/RS), light-duty assembly lines, and clean rooms that prioritize efficiency, low maintenance costs, and good track foundations, the DRS-M Series offers significant advantages:

• Strong Track Adaptability: Provides track gauge compensation of up to 8 mm, easily accommodating track installation deviations or expansion issues that may arise over time, ensuring smooth operation and reducing additional adjustment costs.

• Complete Maintenance-Free Design: Equipped with a life-lubricated bearing system, requiring no lubrication maintenance after installation, significantly reducing lifecycle maintenance costs and manual effort.

• Optimized Performance and Integration Convenience:

• Integrated Damping Elements: Effectively absorb operational vibrations and impacts, protecting the drive mechanism while reducing noise.

• Multiple Standardized Connection Surfaces: Facilitate the installation of various sensors (e.g., position detection switches), enabling easy integration into automated control systems to meet the needs of intelligent logistics equipment.

• Lightweight Aluminum Housing: Reduces overall weight while ensuring strength, contributing to lower energy consumption of the equipment.

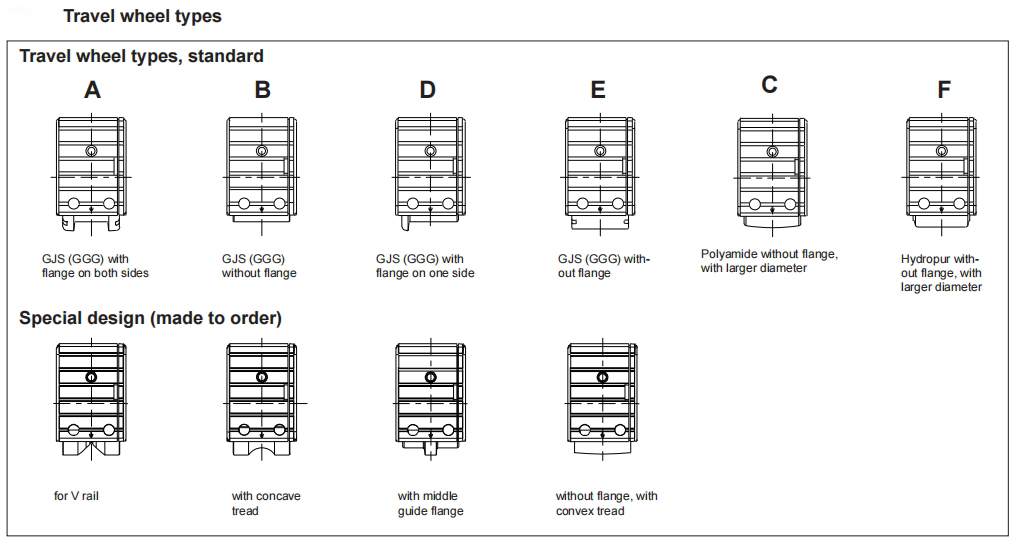

• Modularity and Versatility: The DRS-M system offers more modularity and versatility, accommodates higher horizontal forces, and offers seven different wheel material options, including ductile iron, polyamide, and Hydropur tires.

The Smilarities of DRS and DRS-M Travel Wheel Blocks

• Natively Optimized Compatibility:
  Both wheel block types feature precision-machined standardized connecting interfaces, enabling quick and accurate coupling with the full range of a motor, significantly reducing on-site adjustment and adaptation time.

• Efficient and Stable Power Transmission:
  Thanks to strict manufacturing tolerances and a reliable shaft coupling design, the motor power is transmitted to the travel wheel with minimal loss, reducing energy waste and improving operational efficiency.

• Ground Clearance Advantage of the 112–200 Series:
  Based on a compact and lightweight structure, the DRS-M series is specifically optimized for integrated installation dimensions when paired with motors, providing excellent ground clearance. This is crucial for preventing undercarriage impacts and ensuring unobstructed operation on uneven surfaces or in environments with obstacles.

• Technical Implementation:
  Through innovative bolted housing design and internal structural engineering, maintenance personnel can directly remove the wheel end cover to inspect or replace core operating components.

• Core Value Delivered:

• Significant Maintenance Time Savings: Reduces traditional downtime from hours to minutes, greatly enhancing equipment availability.

• Notable Reduction in Maintenance Costs: Eliminates the need for large lifting equipment to disassemble the entire housing, saving labor, time, and equipment expenses.

• Lowered Technical Threshold for Maintenance: The simplified process reduces dependence on specialized maintenance personnel—ordinary workshop operators can perform the task after basic training.

Whether you need heavy-duty solutions for extreme operating conditions or lightweight configurations focused on high efficiency and energy savings, MAILUN can provide a complete set of wheel group solutions with matching performance. Our product line fully covers a load range from 2.75 to 40 tons, and all products feature a modular design for rapid integration with mainstream drive systems.  Contact us today to discuss your requirements, request a quote, or learn more about how MAILUN DRS Travel Wheel Blocks can deliver reliability and value to your business.
