The Modular Design of DRS Travelling Wheel Block
The DRS travelling wheel block system is a highly versatile and efficient solution for a wide range of intralogistics and mechanical engineering applications. Its modular design is a core feature that enhances flexibility, simplifies integration, and reduces maintenance efforts across various use cases. Below is a comprehensive explanation of its modular architecture and its benefits:
1. Modular System Architecture

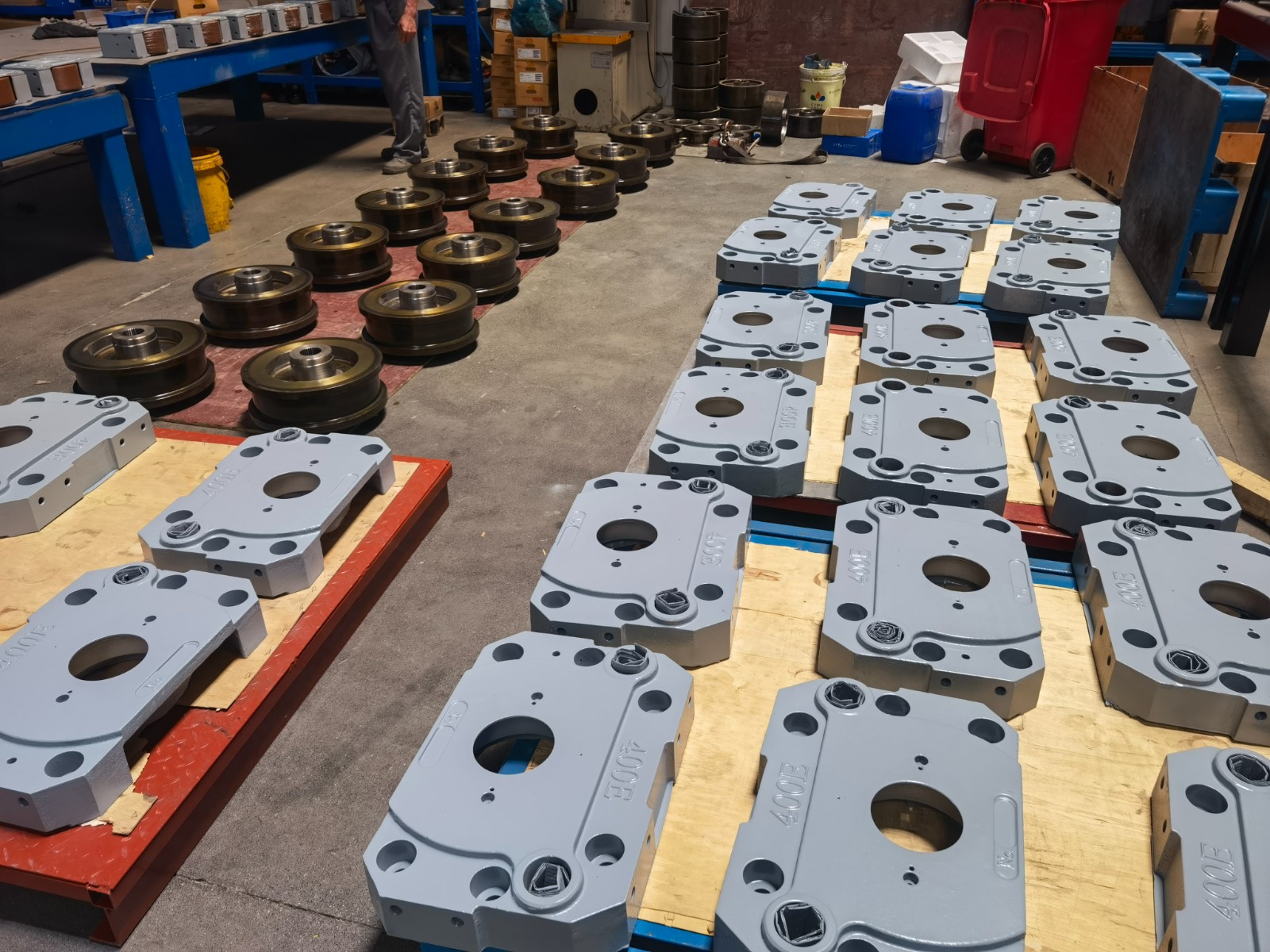

The DRS wheel block system is designed using a modular construction principle, which allows the components to be easily configured or adapted to different operational needs. The system is comprised of several standardized modules that can be combined in various configurations:

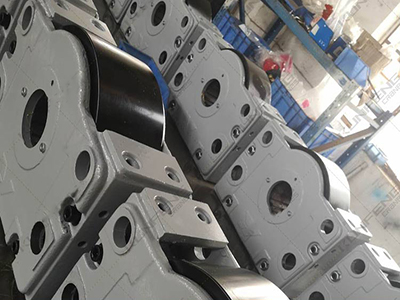

Wheel Blocks: Available in different sizes (typically DRS 112 to DRS 500), each tailored to handle specific load capacities and application requirements.
Mounting Interfaces: Multiple mounting options (top flange, side flange, or hollow profile sections) allow seamless integration into customer-specific designs.
Drive Units: Modular compatibility with Demag motors and gearboxes enables easy configuration of powered wheel systems.

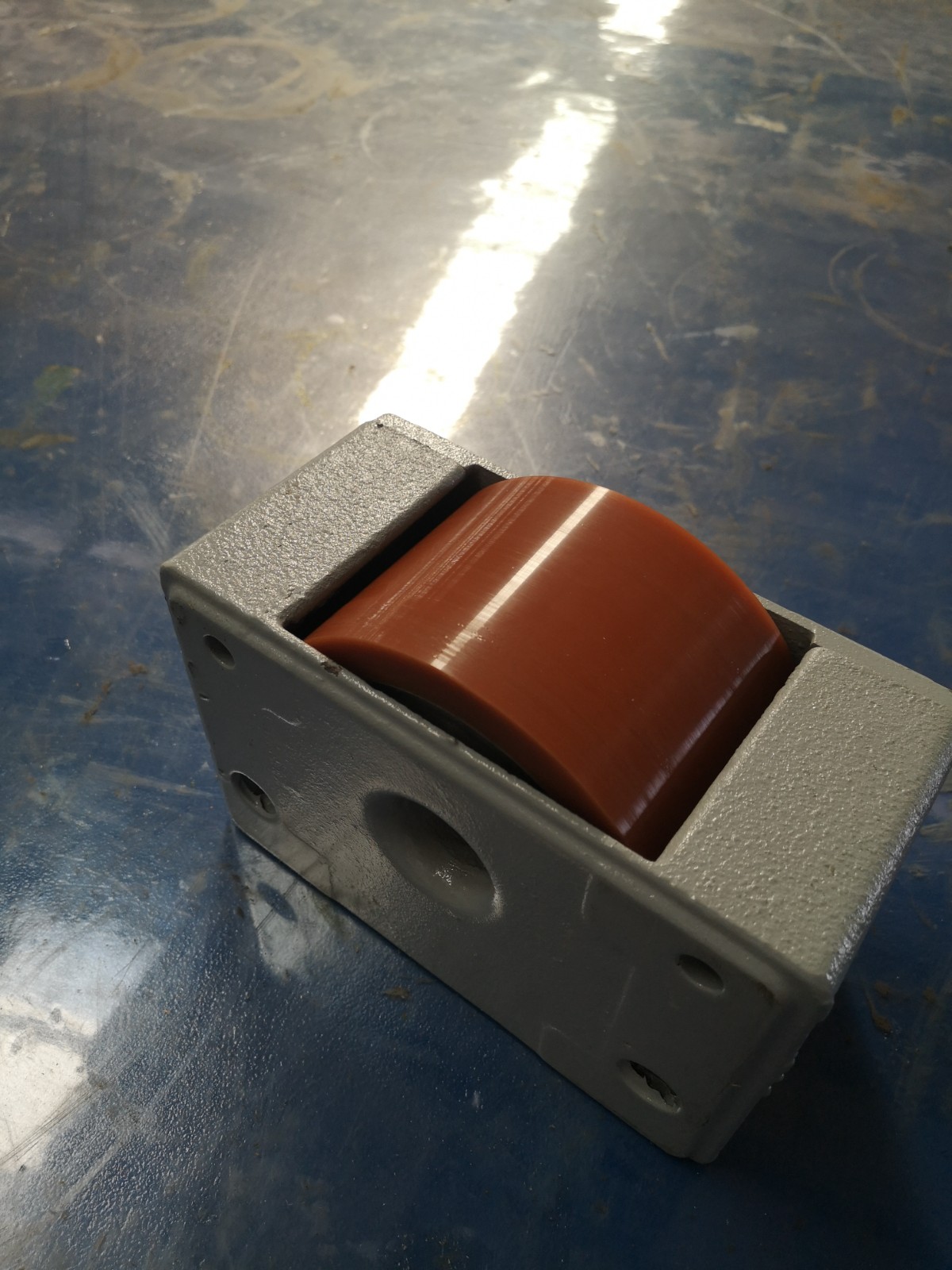

Travel Wheels: Interchangeable wheels made of various materials (steel, polyurethane-coated, or spheroidal graphite cast iron) to suit different rail or floor conditions.
Coupling and Torque Transmission: Modules include torque arms, couplings, and accessories for direct connection to drive mechanisms.
2. Customization and Flexibility
The modular design allows quick customization to suit a wide range of applications:
Load Adaptability: Each module can be chosen based on the desired load capacity, which can range from a few tons to over 40 tons per wheel block.
Compact Design: The wheel blocks have a compact, space-saving design, allowing for integration into limited installation spaces.
Versatility in Application: Can be used in crane systems, transfer carts, conveyor systems, and automated guided vehicles (AGVs).
3. Simplified Maintenance and Spare Parts Management
The standardization and modularity of components significantly reduce downtime and maintenance complexity:
Interchangeable Parts: Standard components are easily replaceable, which reduces the need for custom fabrication.
Reduced Spare Parts Inventory: Because of the uniform design, fewer unique spare parts are required, optimizing inventory management.
Ease of Inspection: The modular layout provides good accessibility for inspection and servicing.
4. High Performance and Reliability
Each module in the DRS system is designed with precision engineering to deliver high levels of performance:
Robust Construction: The wheel blocks are designed for heavy-duty use, ensuring long service life under continuous operation.
Accurate Alignment: Modular components can be aligned precisely, ensuring smooth and stable travel motion.
Integrated Bearings: Preassembled and sealed bearings ensure low maintenance and high reliability.
5. Integration with Smart Solutions
Modern DRS systems can be integrated with digital monitoring systems, offering options like:
Load Monitoring: Sensors for measuring wheel loads.
Condition Monitoring: Vibration and temperature sensors for predictive maintenance.
Connectivity: Compatibility with industrial IoT platforms for real-time data tracking and analysis.
The modular design of the DRS travelling wheel block offers a high degree of adaptability, ease of maintenance, and operational reliability. Its ability to be customized for a variety of applications while maintaining standardized efficiency makes it an ideal choice for modern material handling systems and automation solutions.
