KARL GEORG Wheel Blocks
ATLAS-RB 250 Wheel Block With Side Connnection
The ATLAS-RB 250 Wheel Block With Side Connection is a heavy-duty, precision-engineered wheel assembly designed for material handling systems, crane trolleys, transfer carts, and other industrial machinery requiring smooth and reliable movement under substantial loads.
The ATLAS-RB 250 Wheel Block With Side Connection is a heavy-duty, precision-engineered wheel assembly designed for material handling systems, crane trolleys, transfer carts, and other industrial machinery requiring smooth and reliable movement under substantial loads.
Key Features & Design
1.Robust Construction – The wheel block housing is made from high-strength, welded steel or cast steel to ensure durability, structural integrity, and long service life even under demanding operating conditions.
2.Side Connection Mounting – Unlike standard top-mount designs, the side connection configuration allows flexible installation in tight or height-restricted spaces, optimizing equipment layout and simplifying maintenance access.

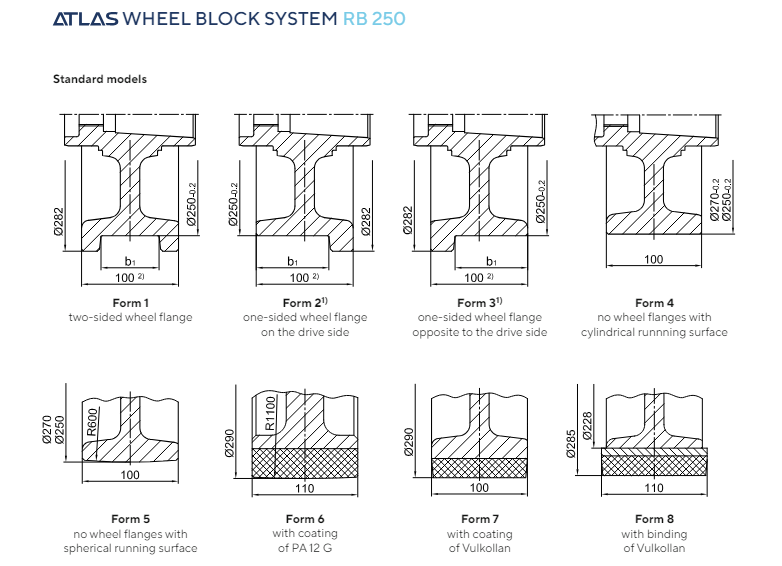

3.High-Performance Wheel – Fitted with a precision-machined wheel made from hardened steel or polyurethane-coated steel, providing excellent wear resistance, high load capacity, and reduced rolling noise.
4.Integrated Bearings – Equipped with high-quality, sealed roller bearings to minimize friction, ensure smooth operation, and protect against dust, moisture, and contaminants.
5.Load Capacity – Rated for up to 250 kN (kilonewtons) depending on the model specification, making it suitable for medium to heavy industrial applications.
6.Maintenance-Friendly – The modular design allows for quick replacement of wheels, bearings, or housing components without dismantling the entire assembly.
Applications
Overhead and gantry cranes
Automated warehouse systems
Transfer trolleys and transport platforms
Assembly line conveyors
Heavy machinery moving systems
Advantages
Space-saving side connection design
High load-bearing capacity with compact dimensions
Low-maintenance operation due to sealed bearings
Customizable wheel materials (steel, polyurethane, or special alloys) for different track conditions
Long service life under continuous duty cycles
Technical Overview (Typical)
| Model | ATLAS-RB 250 SC (Side Connection) |
| Nominal Load Capacity | 250 kN |
| Wheel Diameter | Typically 250–400 mm (customizable) |
| Wheel Material | Hardened steel / Polyurethane-coated steel |
| Mounting | Side-plate connection with precision-aligned bolt holes |
| Bearing Type | Double-row spherical roller bearings (sealed) |
The ATLAS-RB 250 Wheel Block With Side Connection is an ideal solution for operators seeking a compact, versatile, and heavy-duty wheel assembly that can withstand continuous industrial use while offering ease of installation and maintenance.
