DRS Driven Serial Wheels from China Supplier

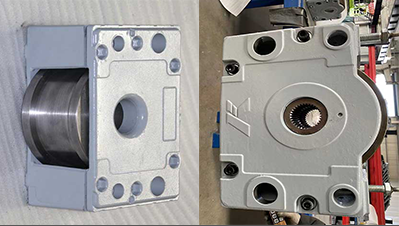

A DRS driven serial wheel is a component within a modular DRS wheel block system, manufactured by Demag, that is specifically equipped with a drive motor. These systems are designed for heavy-load handling applications in industries such as material handling and logistics.
How to Differentiate Driven Wheel and Non-driven Wheel Block ?
Based on power transmission functionality, Demag travel wheel blocks are categorized into driven and non-driven wheels. The driven wheel, which is directly coupled with a motor, serves as the primary power source for the entire travel mechanism. In contrast, the non-driven wheel operates passively, following the motion guided by the driven assembly to ensure coordinated movement.
DRS Driven Series: Model Specifications & Sizing

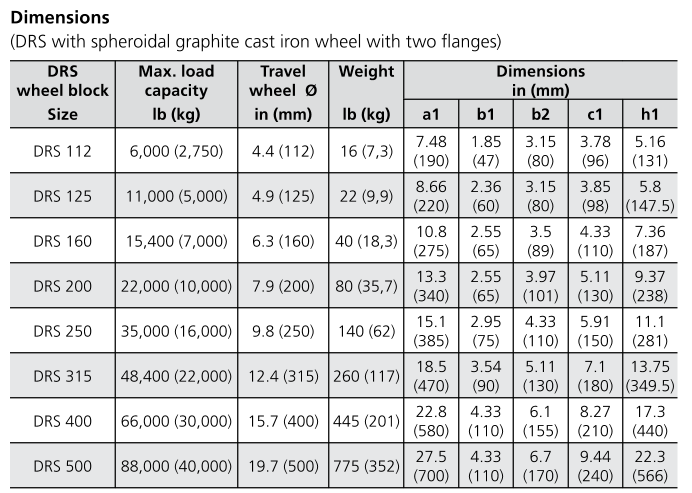

Demag wheel block is of various wheels diameters, such as 112, 125, 160, 200, 300, 400, 500, etc; it adopts the Europe advanced design ideology, greatly improving the work performance and prolonging the work life. As following is the mounting dimensions of Demag wheel blocks:
DRS 112 to 200 (load capacity from 2.75 to 10 t)
DRS 250 to 500 (load capacity from 16 to 40 t)
Custom Solutions of of DRS Driven Serial Wheels
As a production and sales in one of the professional DRS driven wheel block manufacturers, MAILUN can provide tailor-made drive solutions. A variety of different materials, installation forms of travelling wheel are available.
• Driven Wheels are available in various shapes and designs such as: Spheroidal-graphite cast iron , polyamide and hydropur tyres
• Prepared mounting surfaces for virtually any connection: from top and end connection arrangements with bolted and welded connection elements, to side and pin connection arrangements
• In addition to providing wheel boxes, we can also provide related motor accessories and other services.
If you would like to know more about the DRS driven wheel block, free to contact us.
